Analog Signal Chain · Discrete Build

SDR Quadrature Mixer

An HF receiver that takes 8–16 MHz off an antenna and hands a sound card two baseband channels, I and Q. The mixer is not a chip, it is a Gilbert cell built out of individual transistors.

Tools

LTspice · Altium · PyVISA

Board

2-layer, full SMD

Conversion gain

37.5 dB, I and Q

Phase balance

within ±10°

3D render of the two-layer SDR quadrature receiver board, RF input at the left and baseband output at the right

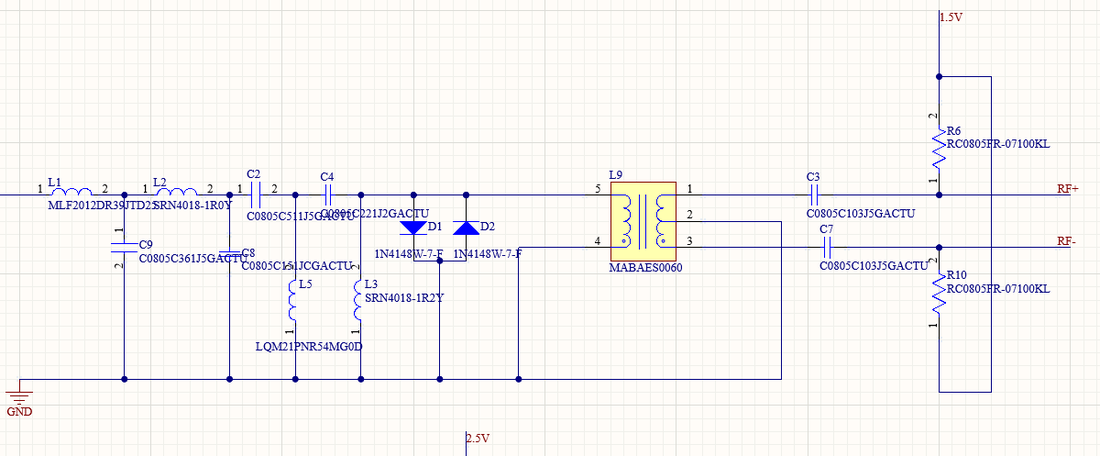

Schematic of the LC input filter, back-to-back diode clamp and MABAES0060 balun with bias resistors — Input filter, diode clamp and balun

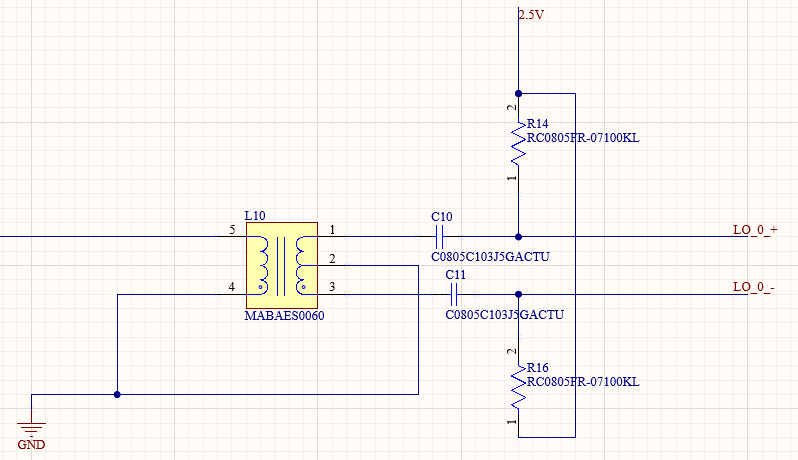

Schematic of the local-oscillator balun: the LO arrives on a pin from off board and the transformer splits it into a differential pair biased to 2.5 V — LO balun, off-board LO in on a pin

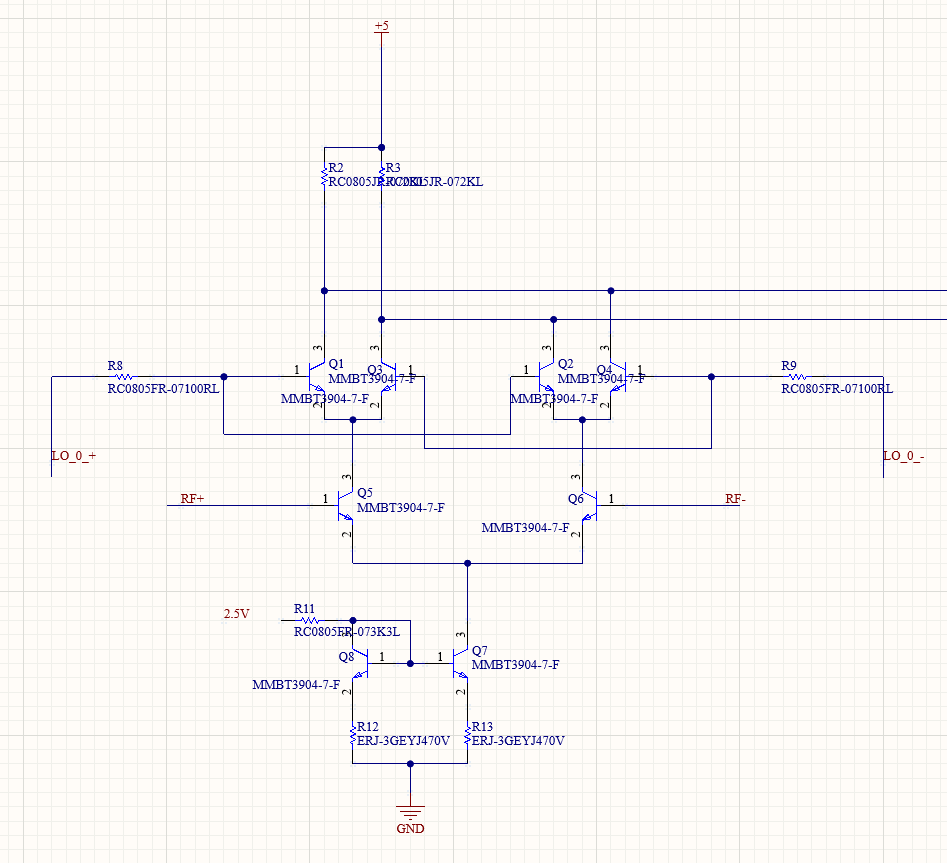

Schematic of a discrete Gilbert cell mixer built from MMBT3904 transistors with a current-mirror tail — Gilbert cell, 8 transistors per phase

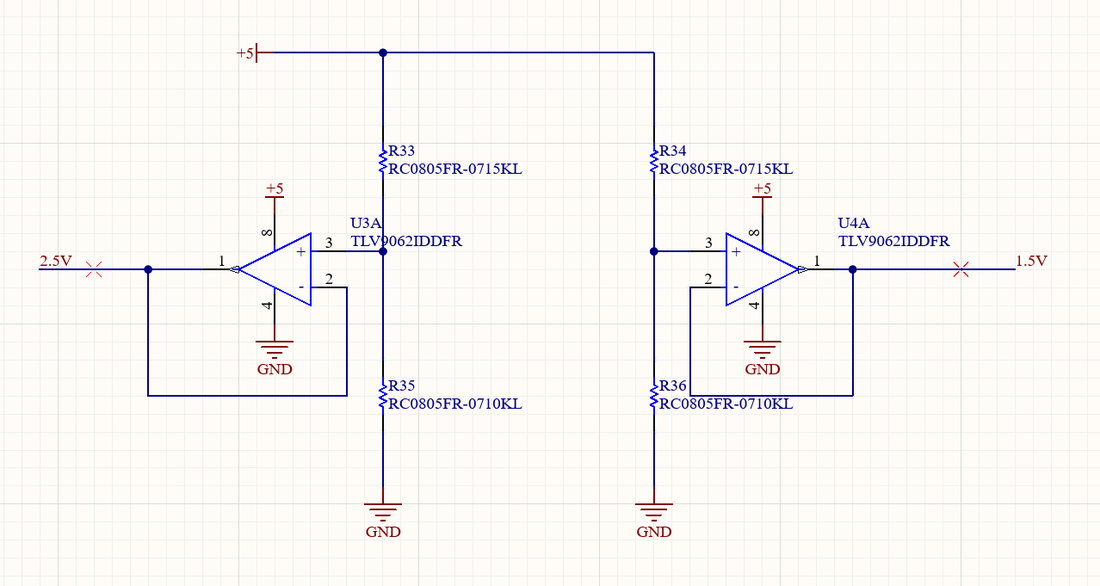

Schematic of two op-amp unity-gain buffers generating the 2.5 V and 1.5 V bias rails from resistor dividers — Buffered 2.5 V and 1.5 V bias rails

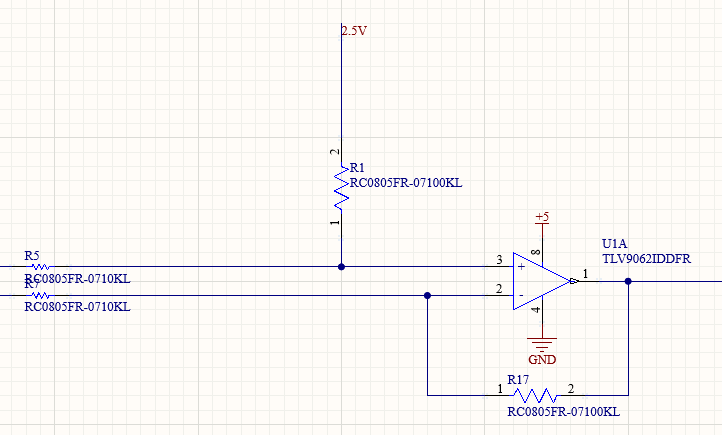

Schematic of a TLV9062 difference amplifier with 10k input resistors and 100k feedback — Difference amplifier, gain of ten

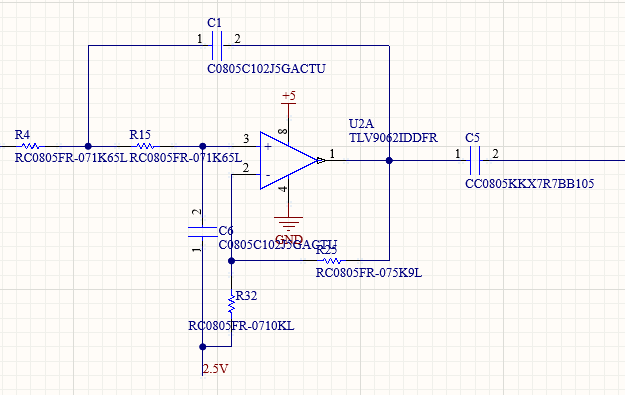

Schematic of a two-pole Sallen-Key low-pass filter built around a TLV9062 — Sallen-Key low-pass, 96.5 kHz

RF input band	8 – 16 MHz
Baseband output	0 – 96 kHz, quadrature I/Q

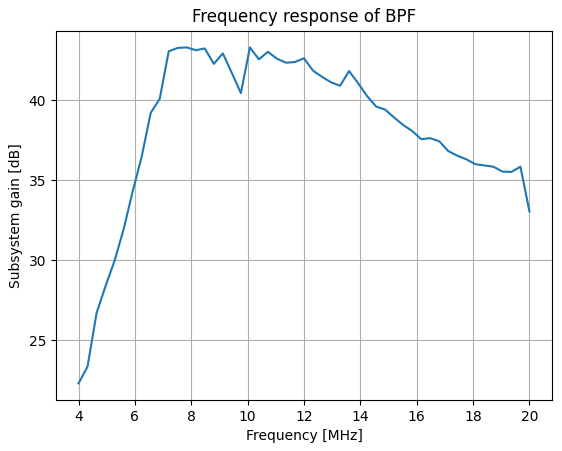

Input subsystem gain	≈ 43 dB peak, 7 – 12 MHz

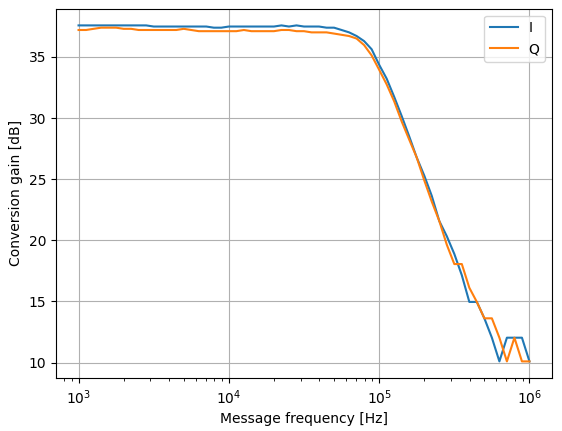

Conversion gain, I and Q	≈ 37.5 dB, flat to 50 kHz

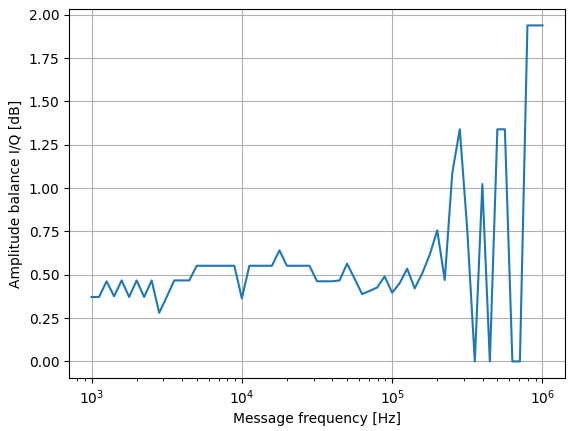

Amplitude balance	0.4 – 0.65 dB in band

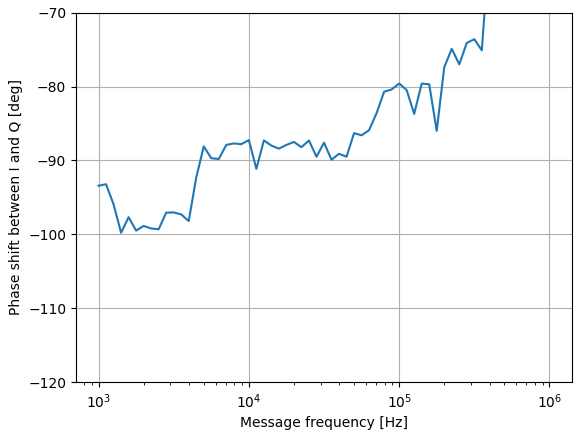

Phase balance	within ±10° of quadrature · spec ±12.5° below 96 kHz

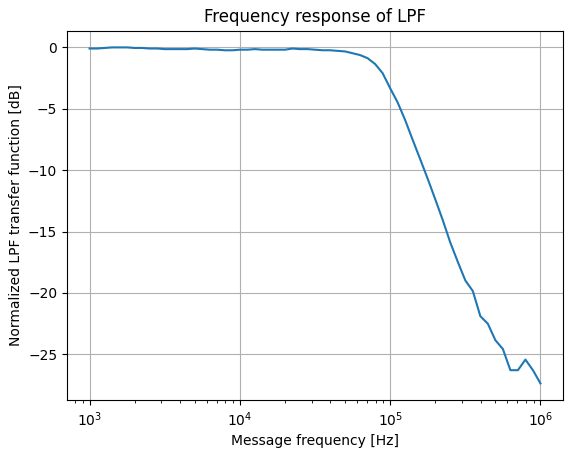

Low-pass corner	96.5 kHz
Mixer	2 × discrete Gilbert cell, 16 × MMBT3904, current-mirror tails
